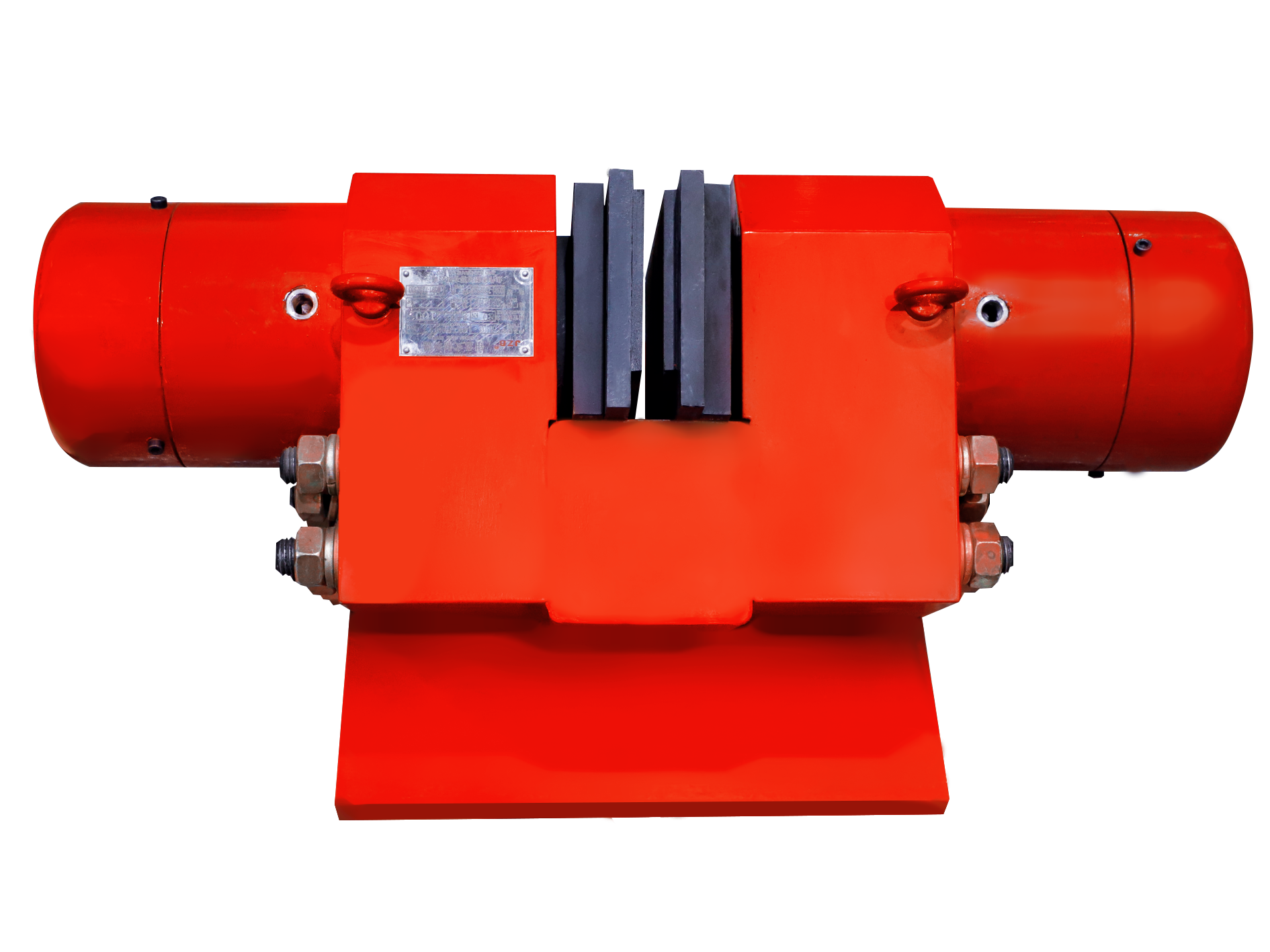

Description
The hydraulic safety (emergency) brake is a high-power braking device used on low-speed shafts (drum shafts).
It can be widely used for emergency safety braking on low-speed shafts of large and medium-sized cranes, port handling machinery lifting, and boom pitching mechanisms.
It is also applicable for working braking and emergency safety braking of mine winches, hoists, and high-power inclined belt conveyors, safety braking of cable cars and cable crane drive mechanisms, and safety (emergency) braking on low-speed shafts of lifting mechanisms in special cranes such as casting cranes.
Performance
| Product Model | Clamping Force F (KN) | Release Pressure(MPa) | Brake Opening Pressure(ml) | Release Clearance(mm) | Friction Coefficient μ | Mounting Bolts/Performance Grade/Mounting Torque | Weight Without Bracket(Kg) |
| SB50 | 50 | 11 | 30 | 1-2 | 0.36 | 8-M20、10.9、680 | 90 |
| SB100 | 100 | 12 | 50 | 1-2 | 0.36 | 8-M24、10.9、1200 | 150 |
| SB160 | 160 | 12 | 70 | 1-2 | 0.36 | 8-M30、10.9、2200 | 310 |
| SB250 | 250 | 13 | 95 | 1-2 | 0.36 | 8-M36、10.9、3540 | 552 |
| SB315 | 315 | 14 | 115 | 1-2 | 0.36 | 8-M36、10.9、3540 | 672 |
| SB400 | 400 | 12 | 170 | 1-2 | 0.36 | 8-M48、10.9、7400 | 1100 |

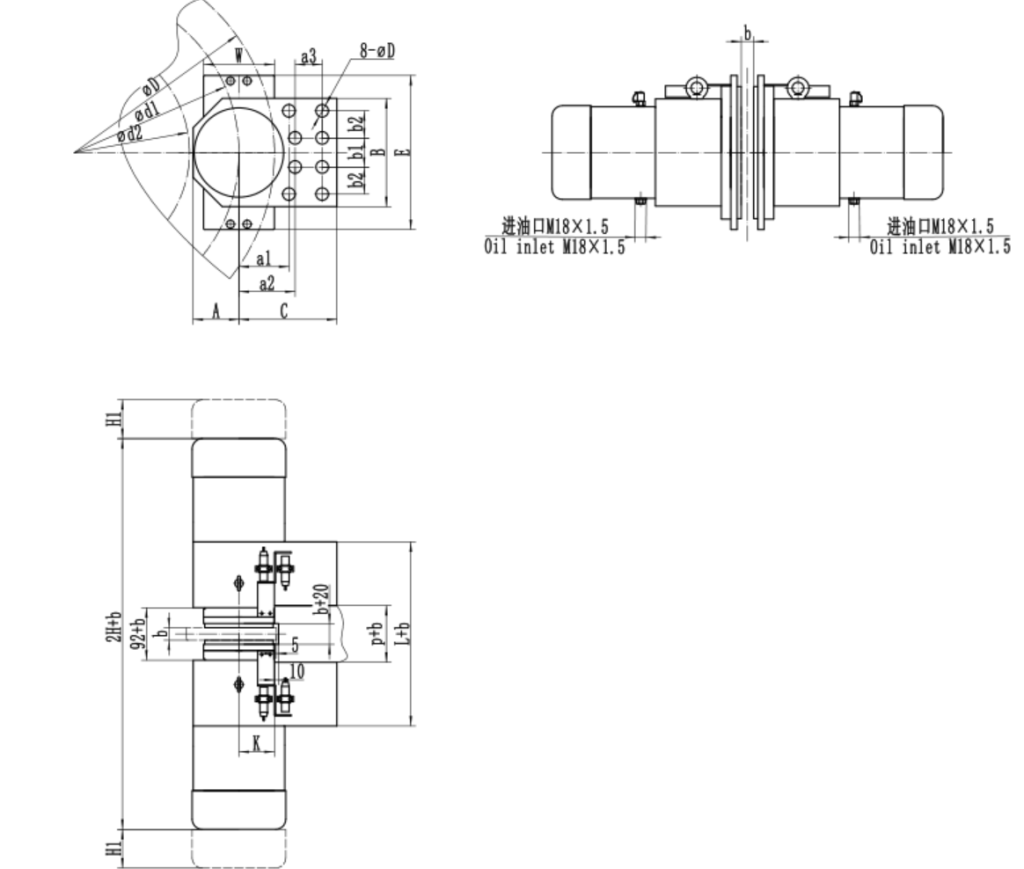

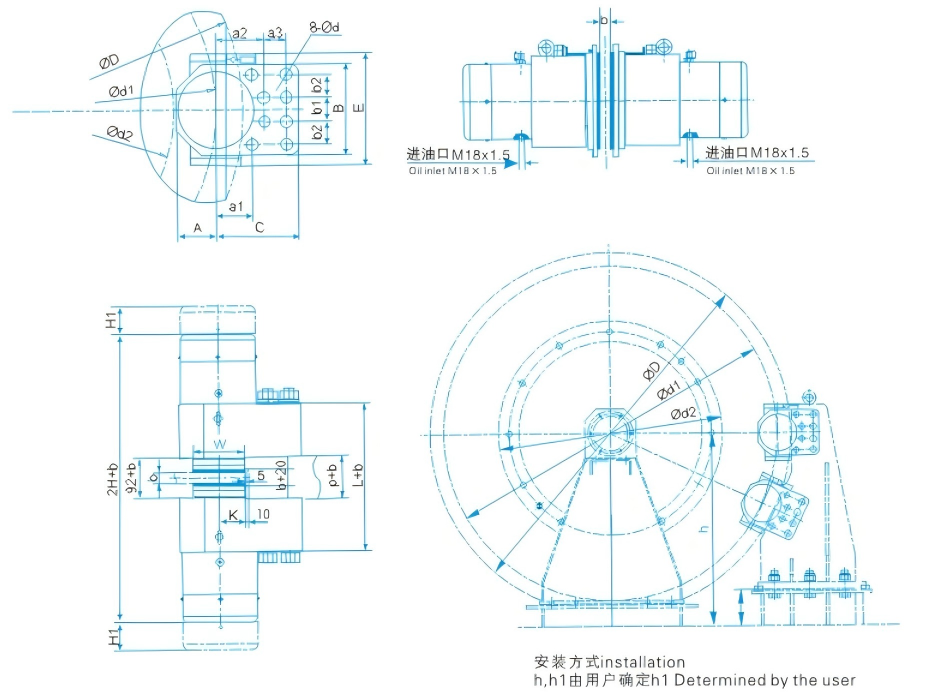

| Braking Torque N m = F × μ × d 1 T o r q u e i n N m = F × μ × d 1 Dimension Chart (mm) | |||||||
Advantages
Normally closed design, safe and reliable; specially designed disc spring applying brake with hydraulic drive release.
High-performance asbestos-free rigid friction linings, stable friction coefficient, non-damaging to brake discs, and insensitive to water media and salt mist (seawater).
Quick action, short closing (opening the gate) time.
Optional limit switches for gate opening, cushion wear limit, etc., for signal display or interlock protection.
Reasonable sealing structure design and imported branded sealing components. Good performance, long lifespan.
Flexible installation position, simple to use, adjust, and maintain.
