Description
The SBD series hydraulic safety (emergency) brake is a high-power braking device used on low-speed shafts (drum shafts). It can be widely applied for emergency safety braking on low-speed shafts of large and medium-sized cranes, port cargo handling machinery lifting mechanisms, and boom lifting and tilting mechanisms. It is also used for working and emergency safety braking on mining winches, hoists, and high-power inclined belt conveyors, as well as safety braking for cable car and cable crane drive mechanisms, and safety (emergency) braking for the low-speed shafts of special cranes, such as casting cranes.
Performance

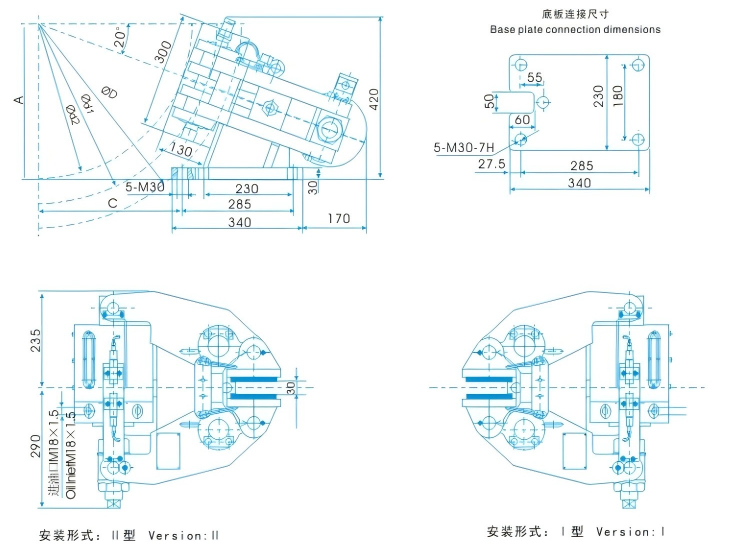

SBD-A Technical Parameter
| Product Model | Product Model Clamping Force(KN) | Release Pressure(MPa) | Brake Opening Pressure(ml) | Release Clearance(mm) | Friction Coefficient μ | Mounting Bolts/Performance Grade/Mounting Torque | Weight Without Bracket(Kg) |
| SB50 | 50 | 11 | 30 | 1-2 | 0.36 | 8-M20、10.9、680 | 90 |
| SB100 | 100 | 12 | 50 | 1-2 | 0.36 | 8-M24、10.9、1200 | 150 |
| SB160 | 160 | 12 | 70 | 1-2 | 0.36 | 8-M30、10.9、2200 | 310 |
| SB250 | 250 | 13 | 95 | 1-2 | 0.36 | 8-M36、10.9、3540 | 552 |
| SB315 | 315 | 14 | 115 | 1-2 | 0.36 | 8-M36、10.9、3540 | 672 |
| SB400 | 400 | 12 | 170 | 1-2 | 0.36 | 8-M48、10.9、7400 | 1100 |
| Braking Torque N m = F × μ × d 1 Dimension Chart ( m m ) | |||||||

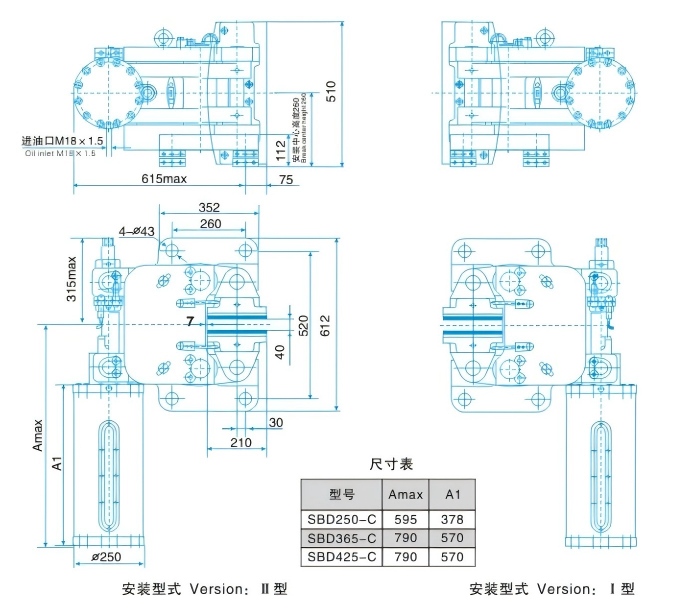

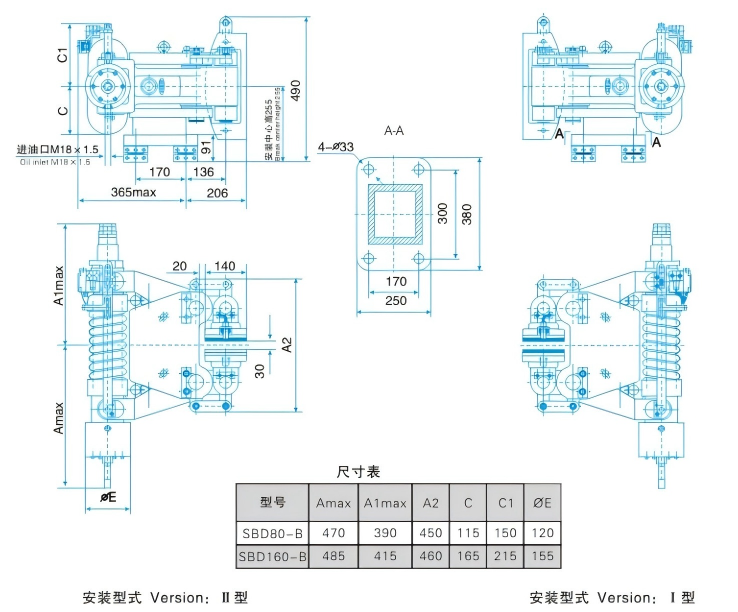

SBD-B and SBD-C Technical Parameter
| Product Model | Rated Clamping Force(KN) | Braking Force(KN) | Single-Side Lining Clearance(mm) | Cylinder Operating Pressure(MPa) | Opening Oil Volume(ml) | Weight(Kg) |
| SBD80-B | 80 | 57 | 1-2 | 9.5 | 55 | 270 |
| SBD160-B | 160 | 115 | 1-2 | 9.5 | 115 | 310 |
| SBD250-C | 250 | 180 | 1-2 | 8 | 275 | 660 |
| SBD365-C | 365 | 262 | 1-2 | 8 | 275 | 720 |
| SBD425-C | 425 | 306 | 1-2 | 9.5 | 275 | 730 |
| Note: 1) The SBD80-B, SBD160-B, SBD250-C, SBD365-C, SBD425-C series safety brakes are the original models of the SBB80, SBB10, SBB250, SBB365, SBB425 series safety brakes.2) Coefficient of friction μ=0.35 | ||||||

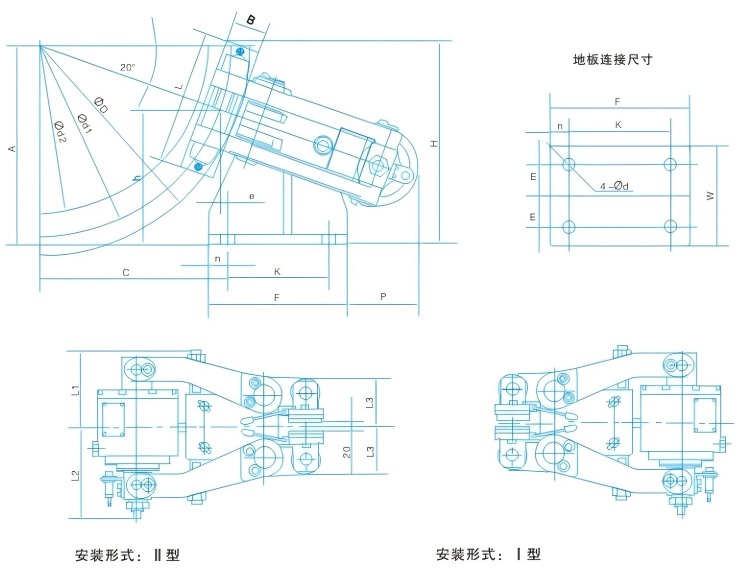

SBD-D Technical Parameter
| Product Model | Total Clamping Force(KN) | Braking Force(KN) | Cylinder Operating Pressure(bar) | Opening Oil Volume(ml) | Brake Opening Clearance(mm) | Weight(Kg) |
| SBD120-D | 120 | 86 | 8 | 150 | 0.75-1.5 | 193 |
| SBD240-D | 240 | 172 | 10 | 170 | 0.75-1.5 | 310 |
Advantages
Normally closed design, safe and reliable.
Custom disc spring force braking, hydraulic drive release (for hydraulic station selection, refer to the hydraulic station sample).
High-performance, asbestos-free, hard friction linings with stable friction coefficient, which do not damage the brake disc and are resistant to water media and salt mist (seawater).
Sensitive action with short brake closure (engagement) time.
Optional features include brake limit switches, lining wear limit switches, etc., for signal display or interlock protection.
Reasonable sealing structure design with imported high-quality seals, ensuring good performance and long service life.
Flexible installation position, easy to use, adjust, and maintain.

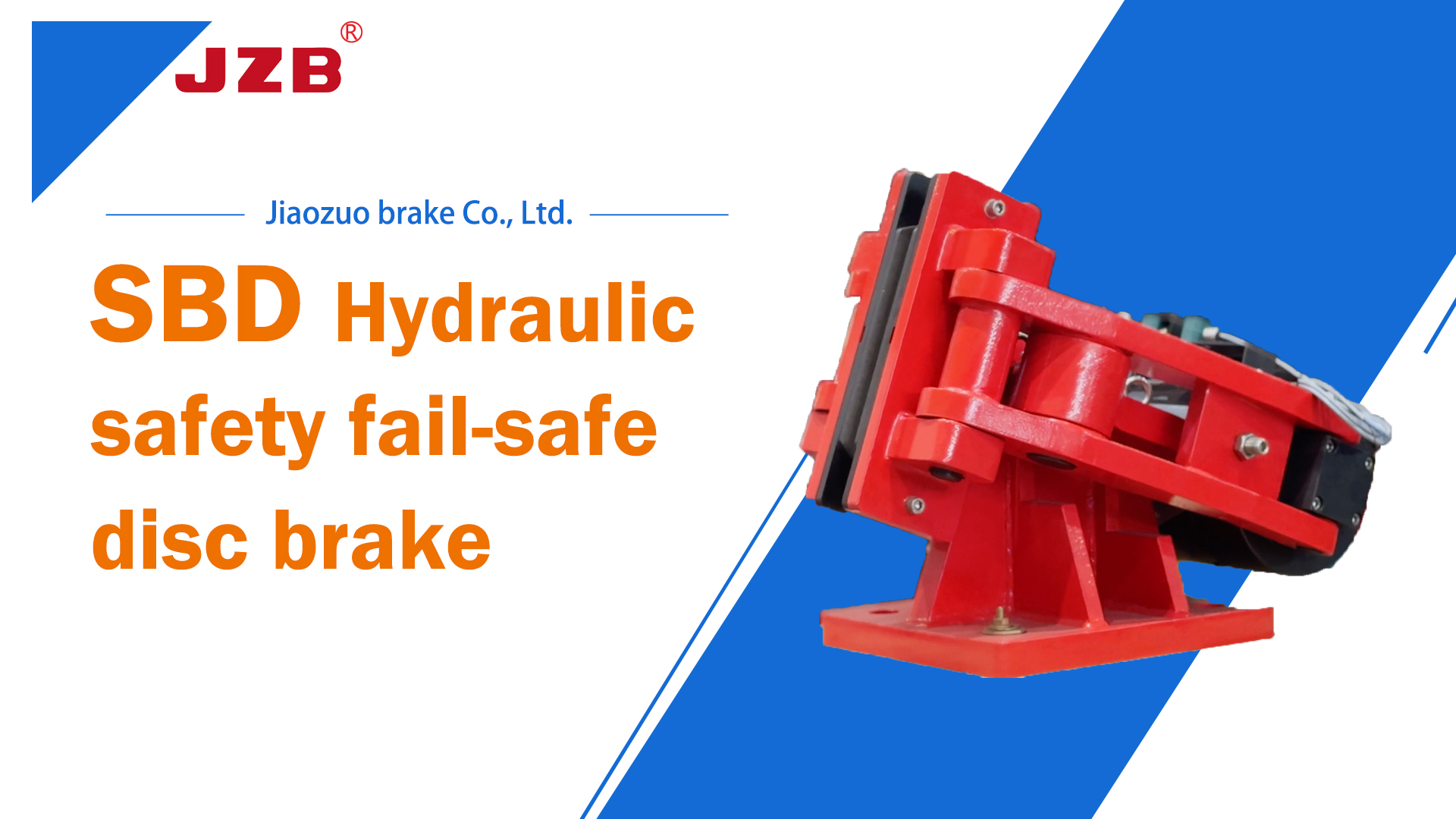

Video
