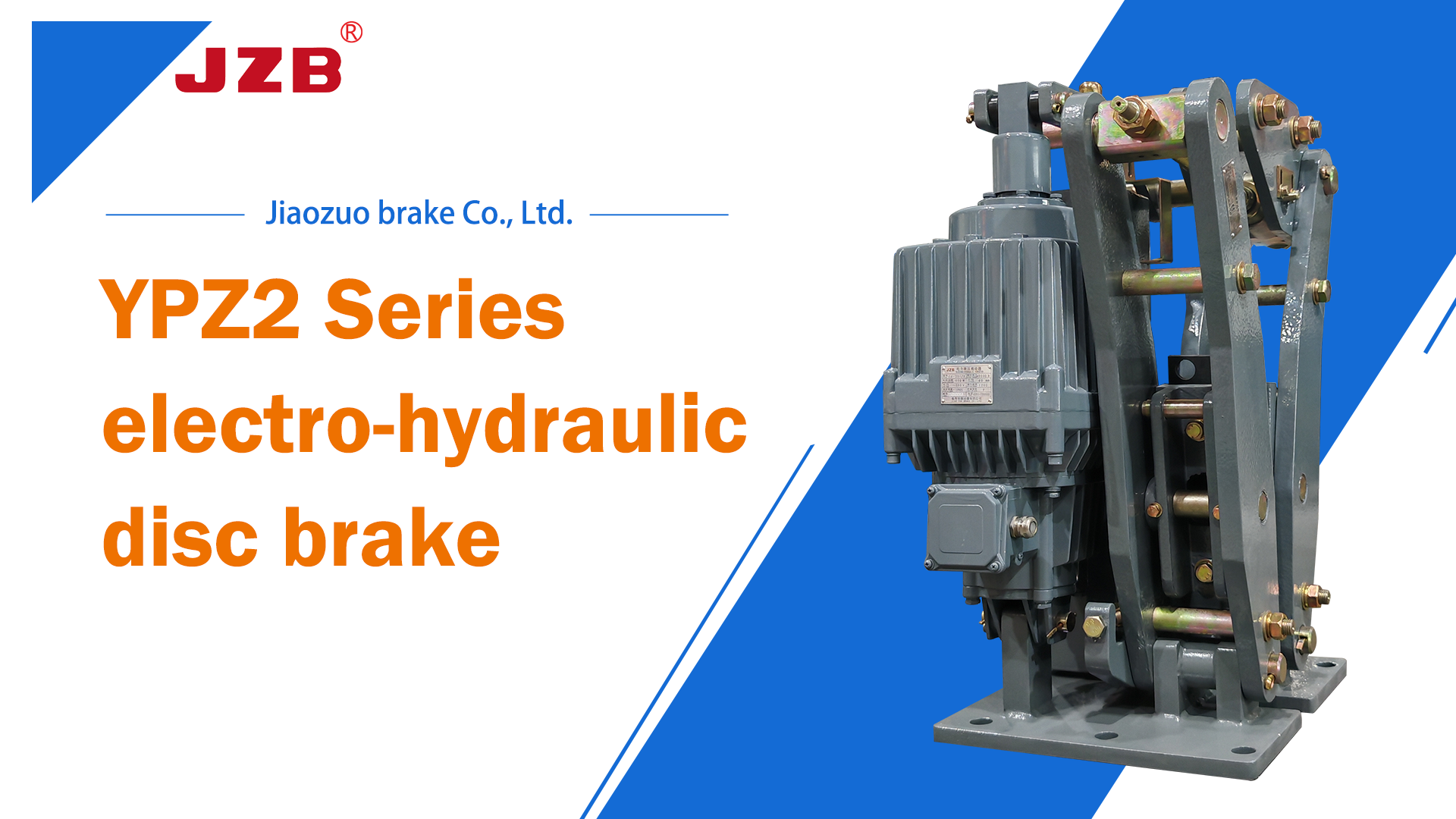

YPZ2 Series Hydraulic Arm Disc Brake

Description

The YPZ2 series hydraulic arm disc brakes are mainly used for braking various mechanisms in machinery such as lifting, transportation, metallurgy, mining, ports, and construction. The product complies with the JB/ZQ4388-86 standard. When energized, the electro-hydraulic thruster operates, and its push rod quickly rises, opening the brake shoe (releasing the brake) through lever action. When the power is off, the push rod of the electro-hydraulic thruster rapidly descends under the force of the brake spring, and the brake shoe is closed (applying the brake) through lever action.

Performance

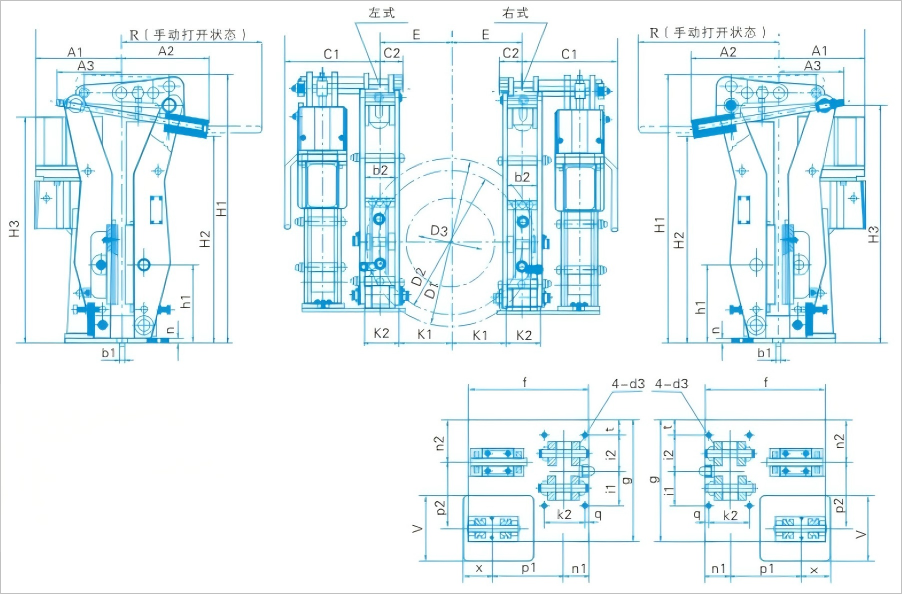

YPZ2 I Technical Data and Dimensional Chart

Thruster Model	t	H1	H2	H3	b2	d3	f	g	h1	i1	i2	K2	A2	A3	n1	n2	p1	p2	q	n	C2	R	A1	C1	X	V
Ed23/5	20	710	515	630	70	18	310	300	230	180	80	120	230	235	80	100	175	160	20	15	75	460	280	297	80	200
Ed30/5	20	710	515	630	70	18	310	300	230	180	80	120	230	235	80	100	175	160	20	15	75	460	277	297	80	197
Ed50/6	20	710	515	630	70	18	310	300	230	180	80	120	230	235	80	100	175	160	20	15	75	460	317	297	97	254
Ed80/6	20	710	515	630	70	18	310	300	230	180	80	120	230	235	80	100	175	160	20	15	75	460	317	297	97	254
Brake-related Dimensions												Technical Parameters
Brake Disc Diameter (D1)	b1		D2	D3	E	K1	S					Compatible Thruster			Brake Disc Diameter (D1)
315	20	30	235	120	118	58	1					Model	Imput Power(W)	Rated Current(A)	315	355	400	450	500	Total Weight(kg)
355	20	30	275	160	138	78						Model	Imput Power(W)	Rated Current(A)	Maximum Braking Torque(Nm)					Total Weight(kg)
400	20	30	320	205	160	100						Ed23/5	165	0.52	270	320				89
400	20	30	320	205	160	100						Ed30/5	200	0.46	380	440	520			95
450	20	30	370	255	185	125						Ed50/6	210	0.48	645	670	790	910	1000	102
500	20	30	420	305	210	150						Ed80/6	330	1.42	1030	1150	1350	1560	1750	104

YPZ2 II Technical Data and Dimensional Chart

Thruster Model	t	H1	H2	H3	b2	d3	f	9	h1	i1	i2	k2	A2	A3	n1	n2	p1	p2	q	n	C2	R	A1	C1	X	V
Ed50/6	35	985	740	870	120	22	375	375	280	130	130	140	285	270	94	165	230	154	24	15	110	730	311	360	97	254
Ed80/6	35	985	740	870		22	375	375	280	130	130	140	285	270	94	165	230	154	24	15	110	730	311	360	97	254
Ed121/6	35	985	740	870	120	22	375	375	280	130	130	140	285	270	94	165	230	154	24	15	110	730	302	360	120	260
Ed201/6	35	985	740	870		22	375	375	280	130	130	140	285	270	94	165	230	154	24	15	110	730	302	367	120	260
Brake-related Dimensions											Technical Parameters
Brake Disc Diameter (DI)	b1	D2	D3	E	K1	s					Compatible Thruster			Brake Disc Diameter(D1)					Total Weight(Kg)
450	30	350	180	175	105	1					Model	Imput Power(w)	Rated Current(A)	450	500	560	630	710
500	30	400	230	200	130						Model	Imput Power(w)	Rated Current(A)	Maximum Braking Torque(Nm)
560	30	460	290	230	160						Ed50/6	210	0.48	1025	1175	1350			178
560	30	460	290	230	160						Ed80/6	330	1.42	1720	1965	2260	2605		179
630	30	530	360	265	195						Ed121/6	330	1.44	2700	3085	3550	4090	4665	194
630	30	530	360	265	195						Ed201/6	450	1.45	4195	4790	5510	6350	7310	194

YPZ2 III Technical Data and Dimensional Chart

Brake-related Dimensions							Technical Parameters
Brake Disc Diameter(D1)	b1	D2	D3	E	K1	S	Compatible Thruster			Brake Disc Diameter(D1)						Total Weight (kg)
630	30	500	310	250	170	1	Model	Imput Power(w)	Rated Current(A)	630	710	800	900	1000	1250
710	30	580	390	290	210					Maximum Braking Torque(Nm)
800	30	670	480	335	255		Ed121/6	330	1.44	3750	4500	5000	5600			294
900	30	770	580	385	305		Ed201/6	450	1.45	6305	7315	8450	9710	10970		294
1000	30	870	680	435	355		Ed301/6	550	1.46	9170	10640	12290	14120	15960	20540	295

Note: D2 – theoretical friction diameter; D3 – maximum allowable outer diameter of the coupling; S – retreat distance of the block on each side.

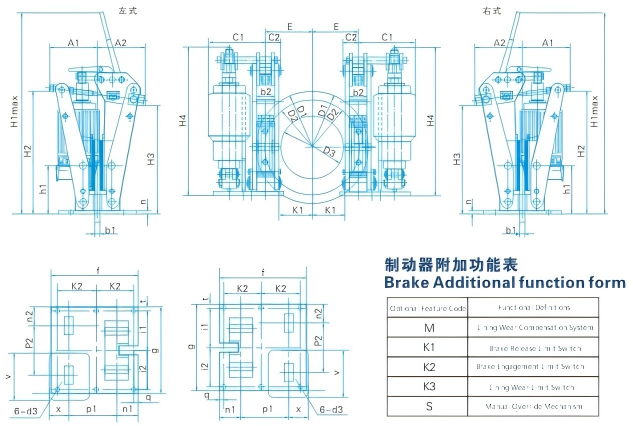

YPZ2 IV Technical Data and Dimensional Chart

Thruster Model	Hmax	H2	H3	H4	b2	d3	f	9		h1	i1	i2	k2	A1	A2	n1	n2	p1	p2	V	q	n	C2	C1	x	t
Ed23/5	612	400	340	500	56	14	230	270		160	80	150	100	208	198	52	40	133	130	200	14	15	60	215	80	20
Ed30/5																				197
Brake-related Dimensions									Technical Parameters
Brake Disc Diameter(D1)	b1	D2	D3	E	K1	S			Compatible Thruster			Brake Disc Diameter(D1)
250	20	200	110	98	61	1			Model	Imput Power(w)	Rated Current(A)	250	280	315	355	400	450	500	Total Weight [kgl
280	20	230	140	113	76							Maximum Braking Torque(Nm)
315	20	260	170	130	93				Ed23/5	160	0.52	200	230	260	300	345	395	445	71
355	20	300	210	150	113				Ed30/5	200	0.46	270	310	355	410	470	540	610	75
400	20	345	255	173	135

YPZ2 V Technical Data and Dimensional Chart

Thruster Model	H1max	H2	H3	H4	b2	d3	f	g		h1	i1	i2	k2	A1	A2	n1	n2	p1	p2	V	q	n	C2	C1	X	t
Ed50/6	1100	537	474	645	75	18	330	360		230	145	145	130	275	228	90	110	165	177	254	25	18	80	260	95	35
Ed80/6
Brake-related Dimensions									Technical Parameters
Brake Disc Diameter(D1)	b1	D2	D3	E	K1	S			Compatible Thruster			Brake Disc Diameter(D1)						Total Weight
355	30	275	155	137.5	72.5	1			Model	Imput Power(W)	Rated Current(A)	350	400	450	500	560	630
400	30	320	200	160	95							Maximum Braking Torque(Nm)
450	30	370	250	185	120				Ed50/6	210	0.48	935	1085	1255	1425	1630	1870	97
500	30	420	300	210	145				Ed80/6	330	1.42		1600	1850	2100	2400	2750	104
560	30	480	360	240	175
630	30	550	430	275	210

YPZ2 VI Technical Data and Dimensional Chart

Thruster Model	H1max		H2	H3	H4	b2	d3	f	9		h1	1		i2	K2	A1		A2	n1	n2	p¹	p2	V	q	n	c2	C1	X	t
Ed121/6	1500		699	636	835	108	27	390	430		280	180		180	160	280		270	102	140	210	195	260	22	20	105	330	120	35
Ed201/6
Ed301/6
Brake-related Dimensions										Technical Parameters
Brake Disc Diameter(D1)		b1		D2	D3	E	K1	s		Compatible Thruster							Brake Disc Diameter(D1)										Total Weight (kg)
450		30		350	170	175	95			Model			Imput Power		Rated Current((A)		450		500	560	630	710	800	900	1000	1100
500		30		400	240	200	120										Maximum Braking Torque(Nm)
560		30		460	300	230	150			Ed121/6			330		1.44		2700		3100	3550	4100	4700	5400				220
630		30		530	370	265	185
710		30		610	450	305	225																				220
800		30		700	540	350	270			Ed201/6			450		1.45		4300		5000	5750	6600	7600	8800
900		30		800	640	400	320
1000		30		900	740	450	370			Ed301/6			550		1.46						9700	11200	12800	14700	16500	18150	220
1100		30		1000	840	500	420

Note: D2 – Theoretical friction diameter: D3 – Maximum allowable coupling outer diameter: S – Block retraction distance per side.

Advantages

Complies with German DIN15435 standard and JB/T7020-2006;

The equal retracting distance device can always keep the retracting distances of the two brake shoes equal during use;

The main swing hinge points are equipped with self-lubricating bearings, which have high transmission efficiency, long service life, and require no lubrication during use;

The brake spring is arranged in the square spring tube; and a brake torque scale is provided on one side, the brake torque is directly displayed, and the adjustment is convenient and intuitive;

The asbestos-free brake lining is plug-in type, making replacement convenient and fast;

The automatic brake pad wear compensation device can keep the shoe clearance and brake torque constant during use;

Certain additional functions can be achieved by adding additional devices;

Manual release device;

Release or close the limit switch to display the signal indicating whether the brake is properly released or closed;

The brake pad wear limit switch can automatically display a signal when the brake pad wears to the limit;

The use of an Ed series actuator with a delay valve allows for the delayed closure of the brake, ensuring smooth braking.
