Operating Conditions
Ambient temperature: -20°C to +50°C.
The surrounding working environment must not contain flammable, explosive, or corrosive gases.
Relative humidity of the air should not exceed 90%.
The altitude of the usage location should comply with GB755-2008.
For outdoor use in areas subject to rain, snow, erosion, or corrosive gases and media, corrosion-resistant products should be used.

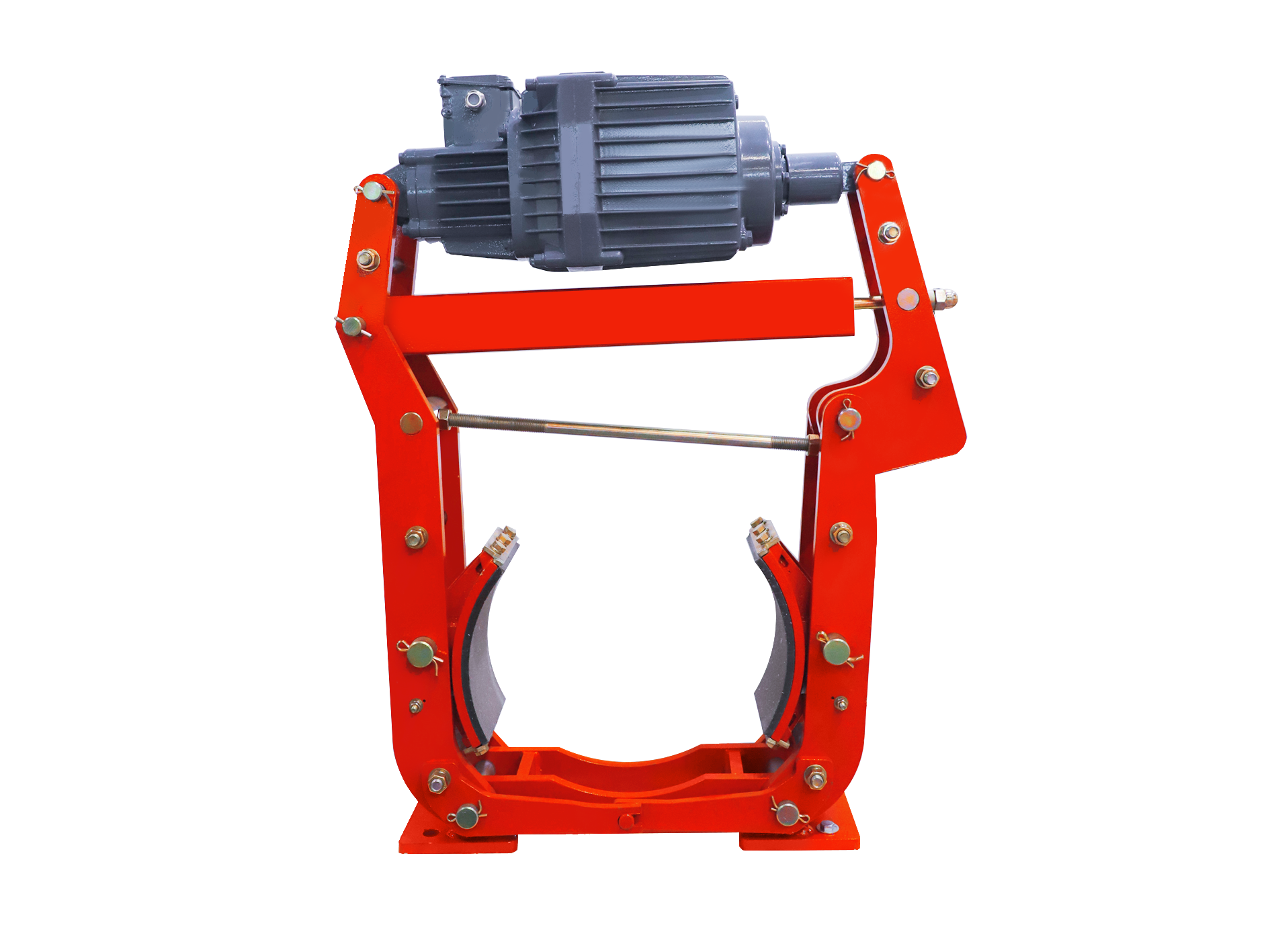

Performance

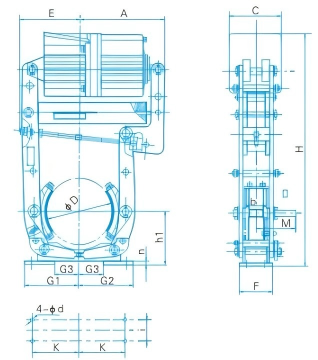

| Brake Model | Match Booster | Braking Torque(N.m) | Retreat Matrix (mm) | A | b | C | D | d | E | F | G1 | G2 | H | h1 | K | M | n | G3 | Weight (kg) | |
| YWL-200/E23 | Ed23/5 | 200 | 0.6 | 215 | 70 | 160 | 200 | 14 | 180 | 100 | 165 | 165 | 710 | 160 | 55 | 145 | 165 | 10 | 75 | 46 |
| YWL-200/E30 | Ed30/5 | 300 | 255 | 210 | 705 | 52 | ||||||||||||||
| YWL-250/E23 | Ed23/5 | 260 | 0.8 | 310 | 90 | 160 | 250 | 18 | 230 | 110 | 200 | 200 | 795 | 190 | 65 | 180 | 225 | 12 | 100 | 53 |
| YWL-250/E30 | Ed30/5 | 380 | 310 | 230 | 790 | 61 | ||||||||||||||
| YWL-250/E50 | Ed50/6 | 700 | 310 | 195 | 230 | 140 | 865 | 69 | ||||||||||||
| YWL-315/E23 | Ed23/5 | 290 | 1.0 | 350 | 110 | 160 | 315 | 18 | 275 | 120 | 245 | 245 | 895 | 230 | 80 | 220 | 255 | 14 | 135 | 72 |
| YWL-315/E30 | Ed30/5 | 410 | 350 | 275 | 890 | 78 | ||||||||||||||
| YWL-315/E50 | Ed50/6 | 720 | 350 | 195 | 275 | 145 | 970 | 81 | ||||||||||||
| YWL-315/E80 | Ed80/6 | 1200 | 350 | 275 | 92 | |||||||||||||||
| YWL-400/E30 | Ed30/5 | 390 | 1.25 | 370 | 140 | 160 | 400 | 22 | 340 | 160 | 310 | 310 | 955 | 280 | 100 | 270 | 280 | 14 | 150 | 98 |
| YWL-400/E50 | Ed50/6 | 750 | 440 | 195 | 340 | 1075 | 102 | |||||||||||||
| YWL-400/E80 | Ed80/6 | 1250 | 440 | 340 | 114 | |||||||||||||||
| YWL-400/E121 | Ed121/6 | 1900 | 440 | 240 | 340 | 1064 | 132 | |||||||||||||
| YWL-500/E50 | Ed50/6 | 900 | 1.25 | 435 | 180 | 195 | 500 | 22 | 400 | 200 | 365 | 365 | 1245 | 340 | 130 | 325 | 350 | 21 | 185 | 154 |
| YWL-500/E80 | Ed80/6 | 1650 | 400 | 159 | ||||||||||||||||
| YWL-500/E121 | Ed121/6 | 2500 | 240 | 400 | 1235 | 176 | ||||||||||||||
| YWL-500/E201 | Ed201/6 | 4100 | 400 | 181 |
Advantages
The main swing hinge points are equipped with self-lubricating bearings, providing high transmission efficiency and long service life, requiring no lubrication during use.
The performance is safe and reliable, with smooth braking and high operational frequency.
Braking torque is displayed directly.
Asbestos-free brake linings and brake blocks are installed using a snap-on insertion method, ensuring safety and reliability, with easy and quick replacement.
