Operating Conditions
Ambient temperature: -20°C to +50°C.
The surrounding working environment must not contain flammable, explosive, or corrosive gases.
Relative humidity of the air should not exceed 90%.
The altitude of the usage location should comply with GB755-2008.
For outdoor use in areas subject to rain, snow, erosion, or corrosive gases and media, corrosion-resistant products should be used.

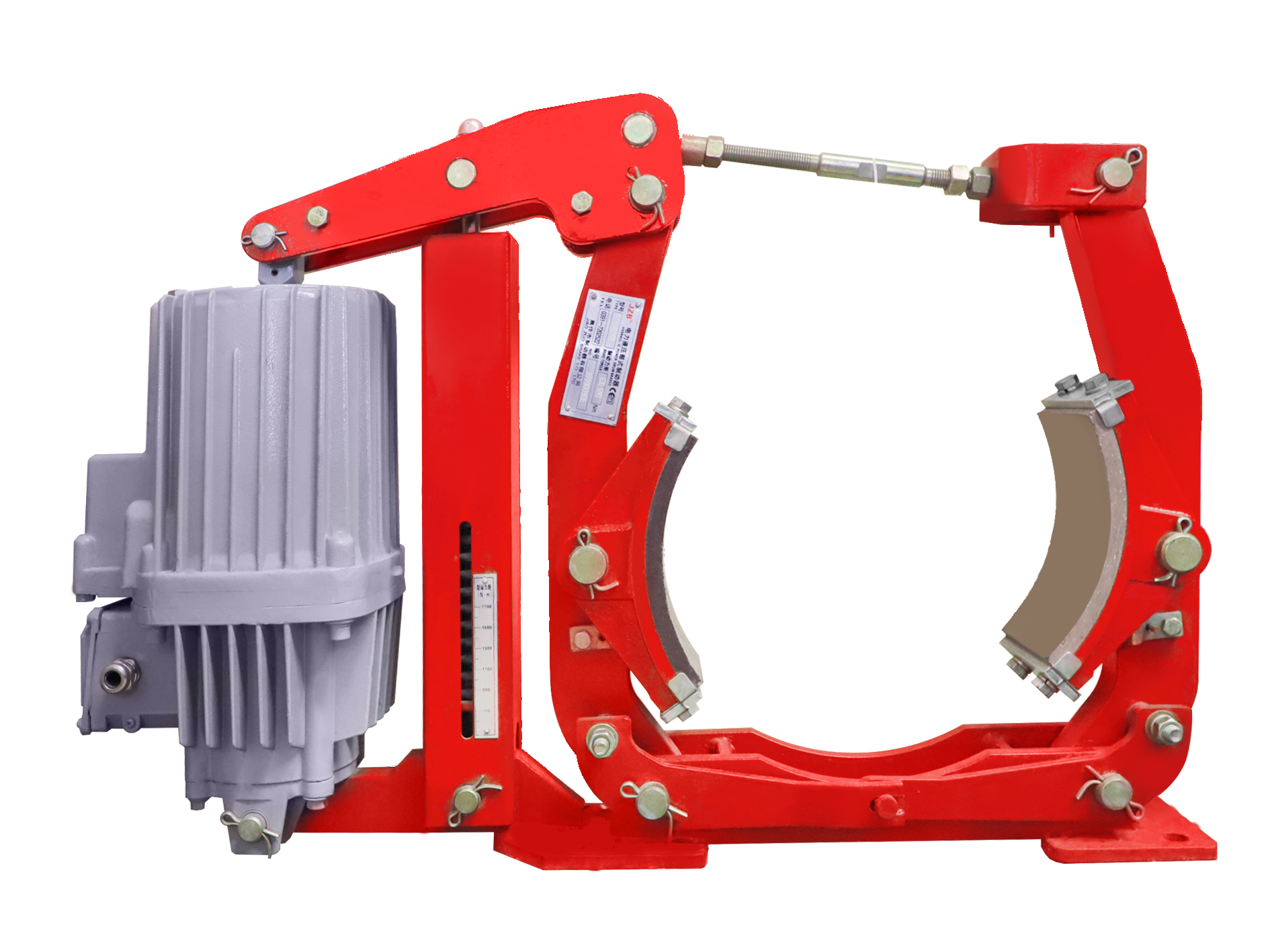

Performance

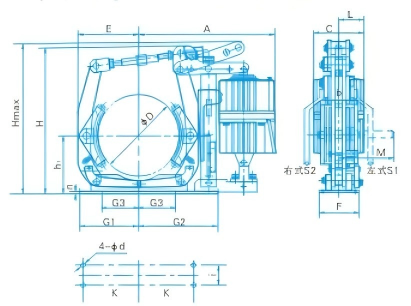

| Brake Model | Match Booster | Braking Torque(N.m) | Retreat Matrix(mm) | A | b | C | D | d | E | F | G1 | G2 | H Hmax | h1 | i | K | M | n | L | G3 | Weight(kg) |
| YW160-E23 | Ed 23/5 | 80-160 | 1.0 | 430 | 65 | 160 | 160 | 14 | 145 | 85 | 145 | 195 | 400/440 | 132 | 55 | 130 | 125 | 8 | 145 | 65 | 32.5 |
| YW200-E23 | Ed 23/5 | 100-200 | 1.0 | 470 | 70 | 160 | 200 | 14 | 175 | 90 | 165 | 265 | 500 | 160 | 55 | 145 | 151 | 10 | 150 | 75 | 35 |
| YW200-E30 | Ed 30/5 | 150-335 | 38 | ||||||||||||||||||
| YW250-E23 | Ed 23/5 | 125-250 | 1.0 | 530 | 90 | 160 | 250 | 18 | 205 | 110 | 200 | 290 | 585 | 190 | 65 | 180 | 180 | 12 | 180 | 100 | 45 |
| YW250-E30 | Ed 30/5 | 180-350 | 533 | 48 | |||||||||||||||||
| YW250-E50 | Ed 50/6 | 300-550 | 570 | 195 | 53 | ||||||||||||||||
| YW250-E80 | Ed 80/6 | 300-970 | 570 | 195 | 56 | ||||||||||||||||
| YW315-E23 | Ed 23/5 | 150-320 | 1.25 | 590 | 110 | 160 | 315 | 18 | 255 | 115 | 245 | 330 | 585 | 230 | 80 | 220 | 207 | 17 | 170 | 135 | 70 |
| YW315-E30 | Ed 30/5 | 200-450 | 195 | ||||||||||||||||||
| YW315-E50 | Ed 50/6 | 315-710 | 620 | 75 | |||||||||||||||||
| YW315-E80 | Ed 80/6 | 630-1240 | 80 | ||||||||||||||||||
| YW400-E30 | Ed 30/5 | 200-470 | 1.25 | 680 | 140 | 160 | 400 | 22 | 310 | 160 | 310 | 420 | 715 | 280 | 100 | 270 | 248 | 14 | 170 | 150 | 138 |
| YW400-E50 | Ed 50/6 | 400-800 | 710 | 195 | |||||||||||||||||
| YW400-E80 | Ed 80/6 | 630-1250 | 140 | ||||||||||||||||||
| YW400-E121 | Ed 121/6 | 1000-2240 | 700 | 240 | 760/775 | 155 | |||||||||||||||
| YW500-E50 | Ed 50/6 | 450-1235 | 1.25 | 810 | 180 | 195 | 500 | 22 | 390 | 180 | 365 | 535 | 815 | 340 | 130 | 325 | 330 | 21 | 180 | 185 | 176 |
| YW500-E80 | Ed 80/6 | 800-1600 | 176 | ||||||||||||||||||
| YW500-E121 | Ed 121/6 | 1250-2500 | 800 | 240 | 835 | 204 | |||||||||||||||
| YW500-E201 | Ed 201/6 | 2000-4000 | 845 | 204 | |||||||||||||||||
| YW630-E121 | Ed 121/6 | 1600-3150 | 1.6 | 925 | 225 | 240 | 630 | 26 | 470 | 220 | 450 | 600 | 1025 | 420 | 170 | 400 | 405 | 20 | 185 | 280 | 310 |
| YW630-E201 | Ed 201/6 | 2500-5000 | 310 | ||||||||||||||||||
| YW630-E301 | Ed 301/6 | 3550-7100 | 315 | ||||||||||||||||||
| YW710-E121 | Ed 121/6 | 1000-3250 | 1.6 | 980 | 255 | 240 | 710 | 27 | 530 | 240 | 500 | 650 | 1135 | 470 | 190 | 450 | 456 | 25 | 220 | 300 | 435 |
| YW710-E201 | Ed 201/6 | 2500-5600 | |||||||||||||||||||
| YW710-E301 | Ed 301/6 | 4000-8000 | 441 | ||||||||||||||||||
| YW800-E301 | Ed 301/12 | 12500 | 2.0 | 1227 | 280 | 240 | 800 | 27 | 600 | 280 | 570 | 830 | 1360 | 530 | 210 | 520 | 476 | 30 | 240 | 310 | 600 |
Advantages
The main swing hinge points are equipped with self-lubricating bearings, resulting in high transmission efficiency and long service life.
Braking torque is displayed directly.
The automatic compensation device allows for automatic compensation when the brake pads wear.
Manual release for easy maintenance.
The interlocking-type retraction device prevents the brake pads from floating against the brake wheel.
