Advantage
The main performance is safe and reliable, with smooth braking and high operational frequency.
Performance

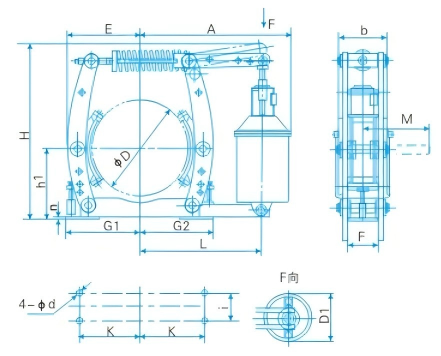

| Brake Model | Brake wheel diameter D | Braking Torque(N.m) | Retreat Matrix (mm) | A | b | D | D1 | d | E | F | G1 | G2 | H | h1 | K | M | n | Weight (kg) | ||
| YWZ3B-160/18 | 160 | 80-140 | 0.5 | 345 | 65 | 160 | 137 | 14 | 157 | 90 | 155 | 155 | 365 | 132 | 55 | 130 | 275 | 145 | 6 | 25 |
| YWZ3B-160/25 | 112-180 | 0.8 | 354 | 154 | 415 | 37 | ||||||||||||||
| YWZ3B-200/18 | 200 | 100-125 | 0.8 | 346 | 80 | 200 | 137 | 14 | 190 | 90 | 180 | 180 | 405 | 160 | 55 | 145 | 277 | 145 | 8 | 28 |
| YWZ3B-200/25 | 112-225 | 1.0 | 379 | 154 | 445 | 277 | 43 | |||||||||||||
| YWZ3B-250/25 | 250 | 140-225 | 1.25 | 408 | 100 | 250 | 154 | 18 | 220 | 100 | 205 | 205 | 480 | 190 | 65 | 180 | 331 | 190 | 10 | 58 |
| YWZ3B-250/45 | 250-400 | 420 | 178 | 515 | 70 | |||||||||||||||
| YWZ3B-315/25 | 315 | 180-280 | 1.25 | 440 | 125 | 315 | 154 | 18 | 247 | 110 | 245 | 275 | 555 | 225 | 80 | 220 | 433 | 220 | 10 | 74 |
| YWZ3B-315/45 | 315-630 | 522 | 178 | 585 | 433 | 78 | ||||||||||||||
| YWZ3B-315/90 | 630-1250 | 538 | 210 | 690 | 433 | 147 | ||||||||||||||
| YWZ3B-400/45 | 400 | 400-630 | 1.6 | 594 | 160 | 400 | 178 | 22 | 304 | 140 | 310 | 310 | 685 | 280 | 100 | 270 | 505 | 275 | 12 | 125 |
| YWZ3B-400/90 | 800-1250 | 610 | 210 | 715 | 140 | |||||||||||||||
| YWZ3B-400/125 | 1120-1800 | 632 | 254 | 730 | 167 | |||||||||||||||
| YWZ3B-500/90 | 500 | 1000-1600 | 1.6 | 697 | 200 | 500 | 210 | 22 | 368 | 180 | 365 | 365 | 790 | 335 | 130 | 325 | 592 | 330 | 16 | 202 |
| YWZ3B-500/125 | 1400-2250 | 719 | 254 | 860 | 220 | |||||||||||||||
| YWZ3B-500/180 | 2000-3150 | 719 | 254 | 940 | 237 | |||||||||||||||
| YWZ3B-630/125 | 630 | 1800-2800 | 2.0 | 814 | 250 | 630 | 254 | 27 | 478 | 220 | 450 | 450 | 1075 | 425 | 170 | 400 | 703 | 400 | 20 | 335 |
| YWZ3B-630/180 | 2500-4000 | 814 | 254 | 1075 | 358 | |||||||||||||||
| YWZ3B-630/320 | 4800-7100 | 875 | 375 | 1090 | 425 | |||||||||||||||
| YWZ3B-710/180 | 710 | 3100-4500 | 2.0 | 985 | 280 | 710 | 254 | 27 | 520 | 240 | 500 | 550 | 1130 | 475 | 190 | 450 | 855 | 452 | 22 | 475 |
| YWZ3B-710/320 | 5000-8000 | 1046 | 375 | 506 | ||||||||||||||||
| YWZ3B-800/320 | 800 | 8000-12000 | 2.5 | 1170 | 320 | 800 | 375 | 27 | 595 | 280 | 570 | 750 | 1290 | 530 | 210 | 520 | 1012 | 510 | 30 | 716 |
Operating Conditions
Ambient temperature: -20°C to +50°C.
Relative humidity of the air should not exceed 90%.
The surrounding working environment must not contain flammable, explosive, or corrosive gases.
The altitude of the usage location should comply with GB755-2008.
For outdoor use in areas subject to rain, snow, erosion, or corrosive gases and media, corrosion-resistant products should be used.
