Description
The TYW series hydraulic drum brake is a normally open brake with a hydraulic drive and horizontal installation. It is controlled by a foot-operated hydraulic pump and is mainly used for the slewing mechanism of medium and small-sized gantry cranes and tower cranes in industries such as lifting, transportation, metallurgy, mining, ports, docks, and construction machinery. It is equipped with a manual brake device, which allows braking in a non-working state.
Do not hesitate to get in touch with our sales department, if you have further questions which are not responded in our product information!
Performance

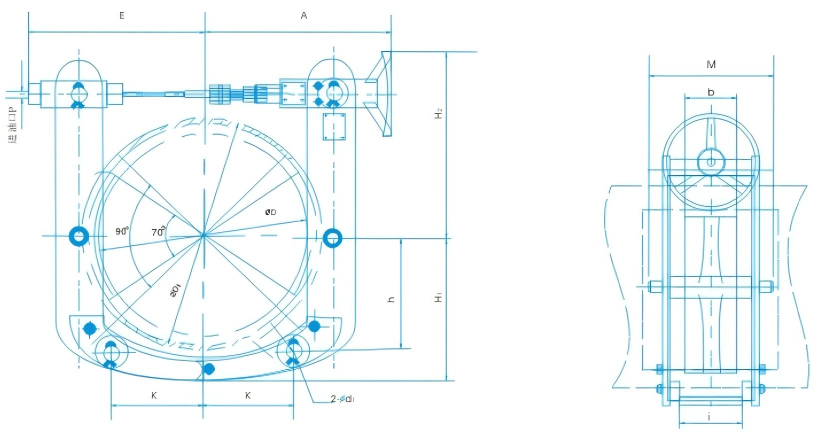

| Model | Oil pressure (MPa) | Rated drive torque (N.m) | P | D | h | K | b | i | d1 | A | E | H1 | H2 | D1 | M | Weight (kg) |
| TYW-300 | 1-2 | 200-400 | M10×1 | 300 | 190 | 135 | 125 | 100 | 30 | 330 | 320 | 235 | 380 | 380 | 200 | 40 |
| TYW-315 | 315 | 110 | 42 | |||||||||||||
| TYW-400 | 2-3 | 600-800 | 400 | 235 | 177 | 120 | 365 | 355 | 280 | 380 | 470 | 220 | 50 | |||
| TYW-500 | 1 | 1400 | 500 | 280 | 195 | 160 | 104 | 440 | 500 | 342 | 480 | 570 | 224 | 80 |
Operating Conditions
Ambient temperature: -20°C to 50°C.
There should be no flammable, explosive, or corrosive gases in the surrounding working environment; otherwise, a corrosion-resistant product should be used.
The relative humidity of the air should not exceed 90%.
