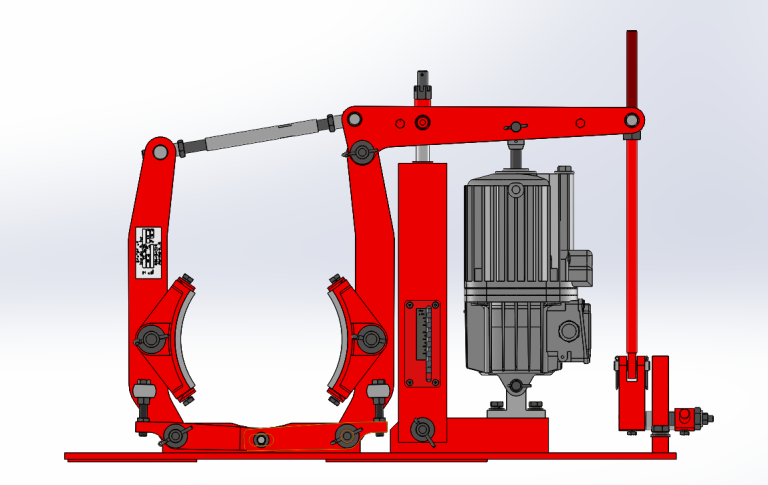

Description
The brake installation dimensions and braking torque parameters conform to the GB6333-86 standard.
Performance
| Retreat Distance （mm） | A | B | B1 | B2 | b | F | C1 | C2 | D | d | E | f | f2 | H | H1 | i | K | L | m | n | n1 | Q | Weight（kg） |
| 1 | 720 | 180 | 230 | 80 | 250 | 160 | 220 | 200 | 14 | 260 | 80 | 665 | 160 | 55 | 145 | 820 | 450 | 10 | 5 | 55 | 60 | ||
| 65 | |||||||||||||||||||||||
| 1.2 | 750 | 220 | 260 | 100 | 280 | 200 | 250 | 250 | 18 | 305 | 100 | 774 | 190 | 65 | 180 | 948 | 550 | 10 | 4 | 55 | 85 | ||
| 90 | |||||||||||||||||||||||
| 102 | |||||||||||||||||||||||
| 1.2 | 830 | 260 | 125 | 280 | 200 | 280 | 315 | 18 | 380 | 150 | 775 | 225 | 80 | 220 | 1100 | 12 | 4 | 55 | 110 | ||||
| 120 | |||||||||||||||||||||||
| 127 | |||||||||||||||||||||||
| 1.5 | 930 | 280 | 160 | 300 | 180 | 300 | 400 | 22 | 440 | 180 | 800 | 280 | 100 | 270 | 1251 | 14 | 4 | 70 | 170 | ||||
| 170 | |||||||||||||||||||||||
| 950 | 205 | ||||||||||||||||||||||
| 2 | 990 | 300 | 200 | 330 | 200 | 330 | 500 | 22 | 510 | 330 | 985 | 335 | 130 | 325 | 1581 | 16 | 4 | 70 | 250 | ||||
| 275 | |||||||||||||||||||||||
| 275 | |||||||||||||||||||||||
| 2 | 1120 | 360 | 250 | 400 | 260 | 260 | 630 | 27 27 | 615 | 240 | 230 | 1128 | 425 | 170 | 400 | 1587 | 20 | 8 | 74 | 390 | |||
| 390 | |||||||||||||||||||||||
| 390 | |||||||||||||||||||||||
| 1250 | 400 | 440 | 260 | 260 | 615 | 260 | 260 | 1288 | 425 | 170 | 400 | 1697 | 20 | 8 | 74 | 480 | |||||||
| 2 | 1220 | 370 | 280 | 410 | 270 | 270 | 710 | 27 27 | 675 | 280 | 280 | 1280 | 475 | 190 | 450 | 1752 | 20 | 8 | 74 | 520 | |||
| 520 | |||||||||||||||||||||||
| 1350 | 400 | 440 | 280 | 280 | 675 | 280 | 280 | 1328 | 475 | 190 | 450 | 1887 | 20 | 8 | 74 | 580 | |||||||
| 2 | 320 | 800 |
Advantages
Performance is safe and reliable, with smooth braking and high action frequency;
It has a interlocking retracement device, ensuring that both sides of the brake pads always retract equally during use, preventing the phenomenon of one side’s brake lining floating against the brake wheel due to uneven retraction;
The main swing hinge points are equipped with self-lubricating bearings, providing high transmission efficiency and long service life, with no need for lubrication during use; the brake springs are arranged inside the spring pipe, with a braking torque scale on one side for convenient and intuitive adjustment; asbestos-free brake linings and brake pads use a card-mounted insertion method. Safe and reliable, easy and quick to replace;
An upward display can be added according to customer requirements.
