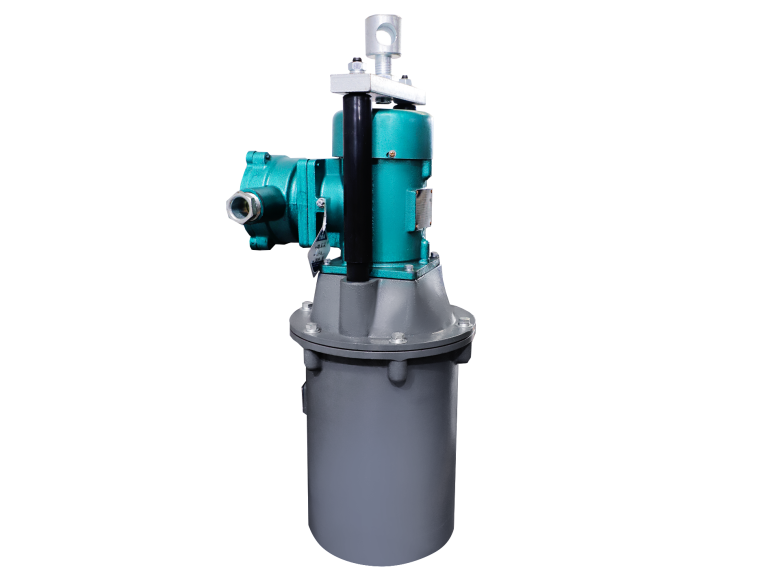

BYT Series Electro-hydraulic Actuator

The BYT Series Explosion-Proof Electric Hydraulic Actuator is a compact drive control device that integrates a motor, centrifugal pump, and oil cylinder, widely used as a drive device for various drum brakes and disc brakes.

Free Quote Now

link

[email protected]

link

Free Quote

Description

Its explosion-proof performance complies with GB3836 1-2010 “General Requirements for Equipment in Explosive Atmospheres Part 1” and GR38362-2010 “Equipment Protected by Explosion-Resistant Enclosures ‘d’ in Explosive Atmospheres Part 2”, with the explosion-proof mark “ExdI”

Performance

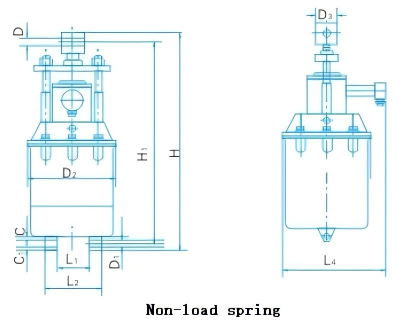

Model	Rated Thrust(kg)	Rated Stroke(mm)	Motor Capacity (kw)	Rated Voltage(V)	Rated Current(A)	Action Time(s)		Frequency(c/h)	D	D1	D2	D3	H	H1	L1	L2	L3	L4	C	C1	Weight(Kg)
Model	Rated Thrust(kg)	Rated Stroke(mm)	Motor Capacity (kw)	Rated Voltage(V)	Rated Current(A)	Up	Down	Frequency(c/h)	D	D1	D2	D3	H	H1	L1	L2	L3	L4	C	C1	Weight(Kg)
BYT-18B/2	18	25	0.06	380	0.16	0.6	0.4	720	12	12	137	25	343	321	25	50		229	15	12	10
BYT-25B/4	25	40	0.06	380	0.16	0.7	0.4	720	12	16	154	25	386	360	32	64		237	18	16	13
BYT-25C/4	25	40	0.06	380	0.16	0.7	0.4	720	12	16	154	25	408	380	32	64		237	18	16	13
BYT-45/4	45	40	0.12	380	0.37	0.7	0.4	720	16	20	178	30	496	460	47	94		244	23	20	20
BYT-45/5	45	50	0.12	380	0.37	0.7	0.4	720	16	20	178	30	496	460	47	94		244	23	20	20
BYT-45/6	45	60	0.12	380	0.37	0.7	0.4	720	16	20	178	30	496	460	47	94		244	23	20	20
BYT-90/6	90	60	0.25	380	0.4	0.8	0.5	720	20	25	210	40	600	555	60	120		270	30	25	30
BYT-90/8	90	80	0.25	380	0.4	0.8	0.5	720	20	25	210	40	600	555	60	120		270	30	25	30
BYT-125/10	125	100	0.4	380	0.7	0.75	0.6	720	25	25	254	50	745	690	40	90		295	30	25	55
BYT-180/8	180	80	0.4	380	0.7	1	0.6	720	25	30	254	50	820	765	85	170		295	40	30	58
BYT-180/10	180	100	0.4	380	0.7		0.6	720	25	30	254	50	820	765	85	170		295	40	30	58
BYT-180/12	180	120	0.4	380	0.7	1	0.6	720	25	30	254	50	820	765	85	170		295	40	30	58
BYT-320/12	320	120	1.1	380	2.5	0.9	0.8	720	35	35	375	55	877	815	100	190		433	44	35	130
BYT-320/20	320	200	1.1	380	2.5	2.4	2	470	35	35	375	55	957	895	100	190		433	44	35	140

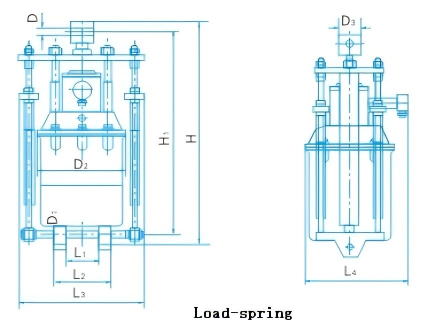

Model	Spring Braking Force（kg)	Rated stroke(mm)	Motor Capacity(kw)	Rated Voltage (V)	Rated current (A)	Action Time（s)		Frequency (c/h)	D	D1	D2	D3	H	H1	L1	L2	L3	L4	C	C1
Model	Spring Braking Force（kg)	Rated stroke(mm)	Motor Capacity(kw)	Rated Voltage (V)	Rated current (A)	Up	Down	Frequency (c/h)	D	D1	D2	D3	H	H1	L1	L2	L3	L4	C	C1
BYT-25Z/4	20	40	0.06	380	0.16	0.7	0.4	720	12	16	154	25	408	380	32	64	228	237	18	16	15
BYT-45Z/6	40	60	0.12	380	0.37	0.7	0.4	720	16	20	178	30	496	460	47	94	266	244	23	20	23
BYT-90Z/8	70	80	0.25	380	0.4	0.8	0.5	720	20	25	210	40	600	555	60	120	320	270	30	25	33
BYT-125Z/10	90	100	0.4	380	0.7	0.75	0.6	720	25	25	254	50	745	695	40	90	390	295	30	25	59
BYT-180Z/12	105	120	0.4	380	0.7	1	0.6	720	25	30	254	50	820	765	85	170	420	295	40	30	63
